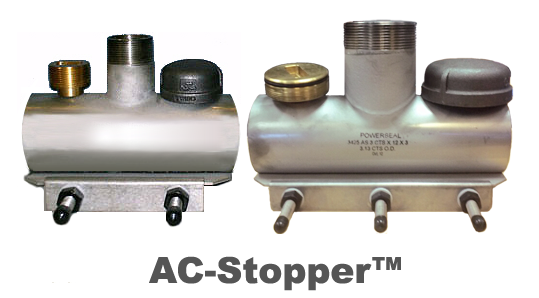

AC-Stopper QT Style S/S Line Stop Saddle

PipeManProducts.com AC-Stopper S/S Line Stop Saddle
  • CopperStopper QT Style Stainless Steel Line Stop Saddle Specs
  • CopperStopper, SteelStopper, PVCStopper FAQ

The AC-Stopper All Stainless Steel Line Stop Saddle series are available as a bolt-on solution for use with the highly rated Qualitech Line Stop machines. This Line Stop Saddle is manufactured for an exact fit on AC Pipe. It comes with a NBR Waffle Gasket, All Stainless Steel Construction with Brass Completion Plug and MI Cap. They are rated for water and sewer applications up to 150 psi.

Recommended for: Line Stops on Asbestos Cement Pipe

Specifications:

  • Panel: Type 304 (18-8) Stainless steel per ASTM A240
  • Gasket: Nitrile (Buna-N, NBR) Chek-O-Seal -40° F - +180° F bursts to 212° F
  • Lugs: Type 304 (18-8) Stainless steel per ASTM A240
  • Bolts: Type 304 (18-8) Stainless steel per ASTM A193 and A194
  • Hex Nuts: Furnished with fusion bonded coating to prevent seizing and galling
  • Outlet: Schedule 80 Type 304/304L Stainless Steel seamless, machined MIP
  • Brass Plug: Half-hard, SAE, CA-360 per ASTM B-16
  • Cap: Standard MI type
  • Working Pressure: Water and Sewer Maximum 150 PSI, Air Maximum 30 PSI
  • Produced in America
  • Call for pricing and availability on the 6x5 IPS units

Asb-Cement (A/C) dia x outlet

Price

Qty


#AC-3x12x3-AS__3x12x3
$548.00


Add to cart

#AC-4x12x3-AS__4x12x3
$548.00


Add to cart

We Specialize in Hot Tapping, Line Stopping, Pipe Freezing, and Commercial Pipe Repair Products!
