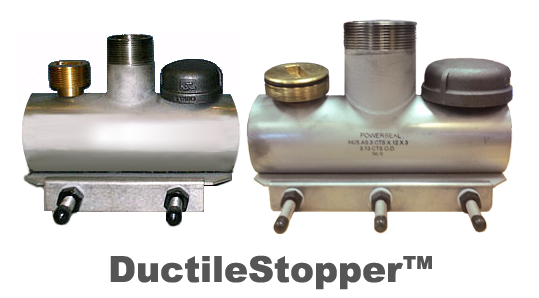

DuctileStopper QT Style S/S Line Stop Saddle

The DuctileStopper All Stainless Steel Line Stop Saddle series are available as a bolt-on solution for use with the highly rated Qualitech Line Stop machines. This Line Stop Saddle is manufactured for an exact fit on Ductile Iron Pipe. It comes with a NBR Waffle Gasket, All Stainless Steel Construction with Brass Completion Plug and MI Cap. They are rated for water and sewer applications up to 150 psi.

Recommended for: Line Stops on Ductile Iron Pipe

Specifications:

• Panel: Type 304 (18-8) Stainless steel per ASTM A240
• Gasket: Nitrile (Buna-N, NBR) Chek-O-Seal -40° F - +180° F bursts to 212° F
• Lugs: Type 304 (18-8) Stainless steel per ASTM A240
• Bolts: Type 304 (18-8) Stainless steel per ASTM A193 and A194
• Hex Nuts: Furnished with fusion bonded coating to prevent seizing and galling
• Outlet: Schedule 80 Type 304/304L Stainless Steel seamless, machined MIP
• Brass Plug: Half-hard, SAE, CA-360 per ASTM B-16
• Cap: Standard MI type
• Working Pressure: Water and Sewer Maximum 150 PSI
• Produced in America
• Call for pricing and availability on the 6x5 IPS units
