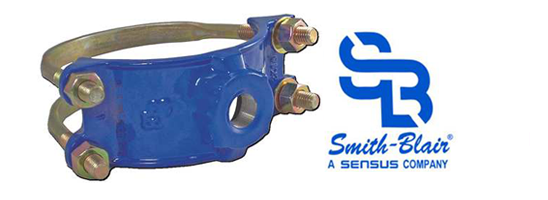

Smith Blair 313 Ductile Iron Double Bale Service Saddle

PipeManProducts.com Smith Blair 313 Ductile Iron Double Bale Service Saddle

Smith-Blair offers the most complete line of Hot Tap service saddles in the industry for fast, dependable tapping of all types of pipes. Their outstanding features include the Taper Seal™ gasket, heavy forged bales, and wrap-around design that reinforces and supports the pipe, are combined in superior service saddles to provide low initial cost, ease of installation, and excellent lasting qualities.


  • Smith Blair 313 Hot Tap Service Saddle Specs
  • Smith Blair 313 Hot Tap Service Saddle Install Info
  • Smith Blair 313 Hot Tap Service Saddle OD Chart
  • Smith Blair 313 Hot Tap Service Saddle Size Chart

Recommended For: Steel, DI, CI, and ACP Pipe

Sizes: 1-1/4" to 24.00" with Female IP Thread Outlets from 3/4" to 4.00"

Specifications:

  • Bodies: Ductile Iron
  • Bales: Carbon Steel Electro-galvanized
  • Nuts: Cold Formed Heavy Hex Steel Electro-galvanized
  • Washers: Carbon Steel Electro-galvanized
  • Gasket: Smith-Blair Nitrile ( Buna-N) Temperature range -20° F to 180° F
  • Finish: Fusion Bonded Flexi-Coat Epoxy minimum 12 mil thickness
  • Pressure Rating: * Up to 300 PSI
  • Certified to: NSF / ANSI 61

* Pressure depends on size, type and condition of the pipe and quality of the installation
Fabricated straps, epoxy coated steel

Pipe O.D. Range x Outlet

Price

Choose Outlet Size

Qty


313-1.61-1.92xOutlet
$42.36
Add to cart

313-2.35-2.56xOutlet
$42.53
Add to cart

313-2.44-2.91xOutlet
$46.69
Add to cart

313-2.97-3.54xOutlet
$50.62
Add to cart

313-3.74-4.13xOutlet
$52.88
Add to cart

313-4.40-4.80xOutlet
$57.44
Add to cart

313-5.00-5.63xOutlet
$59.71
Add to cart

313-5.94-6.90xOutlet
$62.58
Add to cart

313-6.63-6.96x3-x4
$194.17
Add to cart

313-6.84-7.60xOutlet
$73.53
Add to cart

313-7.69-9.05xOutlet
$75.65
Add to cart

313-8.54-10.10xOutlet
$80.29
Add to cart

313-10.64-12.12xOutlet
$103.77
Add to cart

313-11.30-12.12x3-x4
$369.55
Add to cart

313-12.62-14.32xOutlet
$124.48
Add to cart

313-13.40-14.32xOutlet
$438.49
Add to cart

313-14.73-15.65xOutlet
$178.96
Add to cart

313-15.98-16.59x3-x4
$666.04
Add to cart

313-15.95-17.25xOutlet
$181.93
Add to cart

313-17.25-17.80xOutlet
$191.14
Add to cart

313-17.40-18.88xOutlet
$200.10
Add to cart

313-17.81-18.88x3-x4
$723.95
Add to cart

313-19.38-19.68xOutlet
$234.44
Add to cart

313-21.55-21.65xOutlet
$303.18
Add to cart

313-25.75-25.85xOutlet
$319.34
Add to cart
