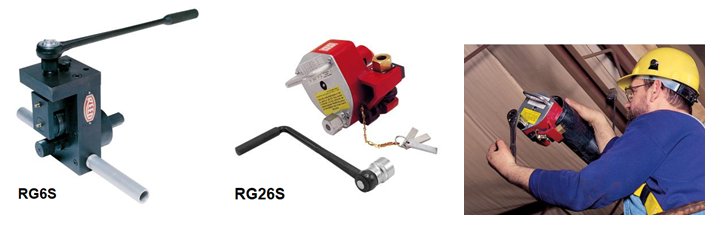

Reed RG6S Portable Roll Groover
1-1/4”-6.0” Sched 5S to Sched 40 - Steel, S/S, & Aluminum and 4.0”-6.0” PVC
Reed RG26S Portable Roll Groover
2.0”-6.0” Sched 5S to 10S, 2.0”-3.0” Sched 40 Steel, S/S, & Aluminum

REED portable roll groovers are compact, durable tools for use at installation sites. Has a 5-Year Warranty.
RG6S has heavy-duty, sealed bearings and a steel body to withstand the punishment of severe grooving applications, including use on Schedule 40 pipe. Finger-adjust depth screw and gauge provide quick adjustment and accurate, repeatable groove depths. No bulky adjusting wrenches required. Combines the compact RG6S design for long life with sealed, heavy-duty bearings and up to 6” capacity. Models manufactured 1/98 and later are equipped to groove PVC pipe also. See date of manufacture stamp near manufacturer's I.D. tag.
Angled rollers keep the groover on the pipe and in-line: will not “walk off” pipe. It uses heavy-duty bearings, hardened and ground shafts, and rollers mounted in a ductile iron housing for durability. Ratchet wrench is easier to use in tight spaces – no cranking needed!
RG26S Roll Groover manually grooves in-place pipe and pipe too short for powered groovers. It is easily carried and positioned with a convenient handle. Screw knob on top of unit makes for easy depth adjustments. Included ratcheting handle that is used for feeding and turning.
| ||||||||||||
