3450AS All Stainless Steel Saddlecorp

Key Features and Specifications:

• Body Casting: Stainless Steel 18-8 ASTM A743
• Straps: Type 304 (18-8) Stainless Steel per ASTM A240
• Stud: Type 304 (18-8) Stainless Steel per ASTM A193
• Nuts: Type 304 (18-8) Stainless Steel per ASTM A194. NOTE: Hex nuts are Furnished with fusion bonded coating to prevent seizing and/or galling
• Material: Constructed from 304 Stainless Steel (18-8), eliminating the need for epoxy coatings.
• Design: Features a one-piece casting that combines the saddle and corporation stop, reducing inventory, potential leak points, and installation time.
• Gasket: Uses a patented TwinSeal dual o-ring design (NBR) that handles both hydrostatic and mechanical forces for a dynamic seal.
• Compliance: Meets or exceeds AWWA C800 standards.
• Certification: Certified by IAPMO R&T to NSF/ANSI 61 (material safety) and NSF/ANSI 372 (low lead compliance).
• Pressure Rating: Up to 300 psi, depending on pipe condition and installation.

Available Configurations:

• Sizes: Available for pipe sizes with 3/4”, 1”, 1-1/4”, 1-1/2”, and 2” outlets.
• Straps: Available with single or double straps.

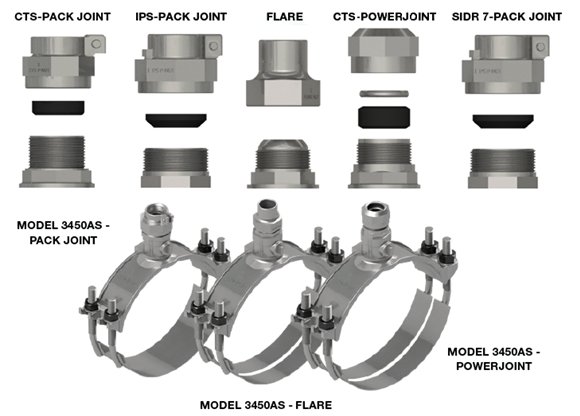

• Connections: Options include Pack Joint (CTS, IPS, SIDR 7), PowerJoint (compatible with Quick Joint), and Flare.
• Fasteners: Stud bolts are MIG welded to the straps.

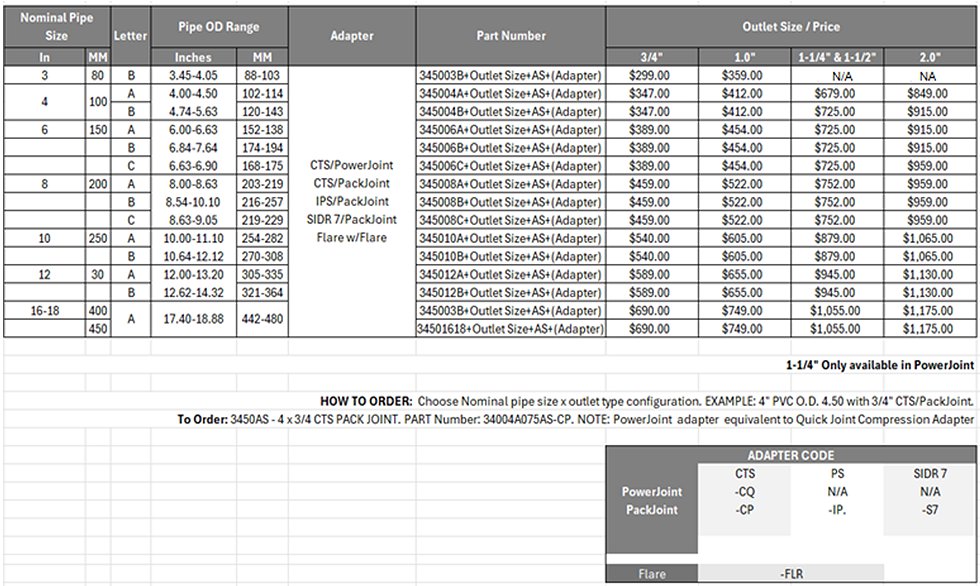

Ordering Information:

Part Number Example: A 4-inch PVC pipe (O.D. 4.50) with a 3/4” CTS Pack Joint is ordered as 3450AS - 4 x 3/4 CTS/PACK JOINT.

Adapter Codes: -CP (Pack Joint), -CQ (PowerJoint), -FLR (Flare), -IP (IPS Pack Joint), -S7 (SIDR 7).
